What items are involved in the process?

Process Map Label Labels identify the items

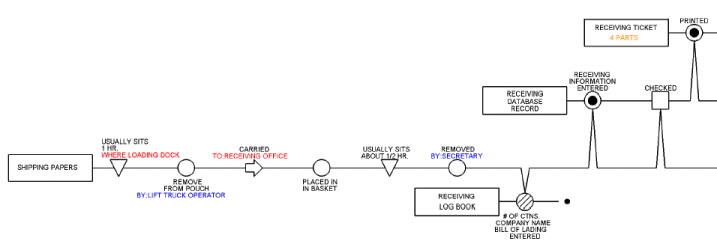

Graham Process Maps display the flow for each item in the process, and show where data on one item is used by another.  In the example below, Shipping papers sit on the loading dock until they are removed from the pouch by the lift truck operator.  They are carried into the Receiving Office and dropped in the in basket.  They sit there for about a half hour until they are picked up by the Secretary.  The Secretary enters information from the Shipping Papers into the Receiving Log Book, keys information from the Shipping Papers into the Receiving Database and then uses the Shipping Papers to check the entries.  Finally, a 4-part receiving Ticket is printed from the Receiving Database.
Process Map - Follow the Items
